Volvo FH specifications

Please refer to our Sales Team for more information.

Three different versions of exterior trim are available to suit different needs.

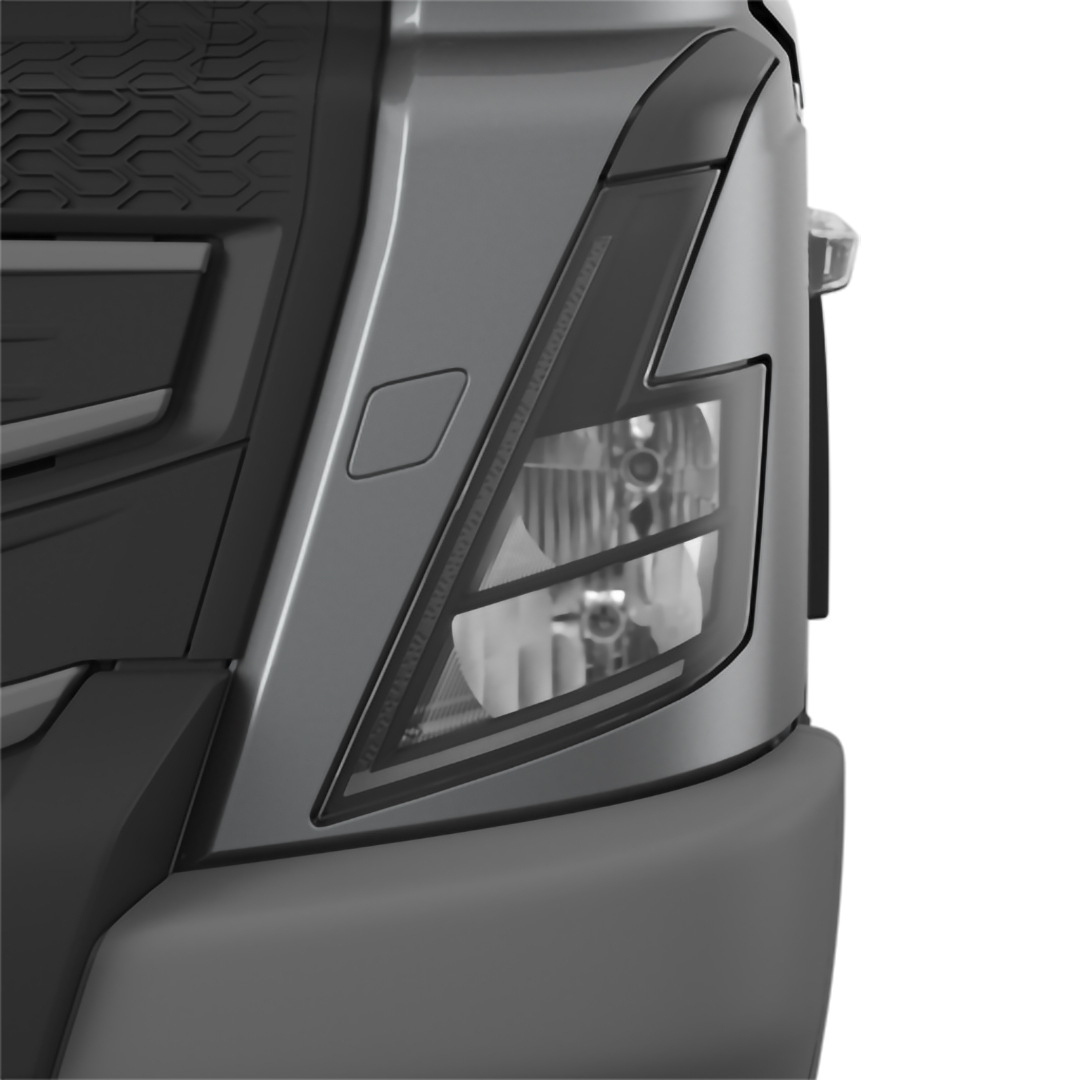

Basic

Thunder gray grille and door handles. Chrome headlamps. Lightning gray sun visor, mirror covers and bumper.

Enhanced

Cab colored grille and chrome headlamps. Lightning gray sun visor, mirror covers, door handles and bumper.

Highest level

Cab colored grille, mirror covers, sun visor, door handles, bumper and spoiler.  Chrome headlamps.

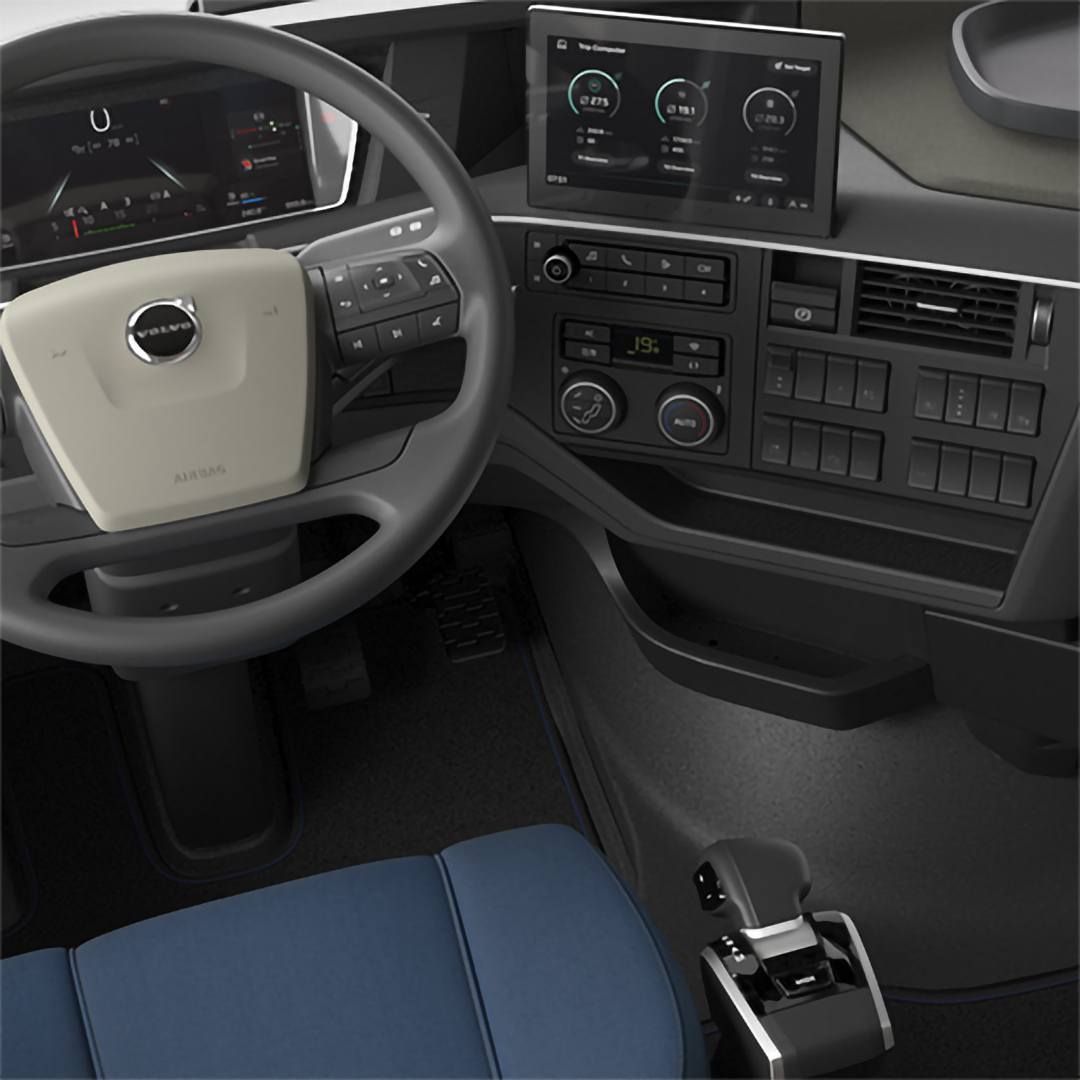

Vinyl and textile trim Robust

Durable materials in vinyl and textile with a modern color scheme that matches the various parts of the interior trim.

Globetrotter XL: built for storage

The Globetrotter XL (CAB-XHSL) also provides secure and comfortable accommodation for up to two people, but with even more storage space, thanks to its extra height. The cab's interior height is 220 centimetres (211 centimetres on the engine compartment cover).

Globetrotter cab: two's company

The Globetrotter cab (CAB-HSLP) doubles as comfortable overnight accommodation for up to two people. Plus, its vertical structure leaves you with plenty of extra storage space. Interior height 205 centimetres (196 centimetres on the engine compartment cover).

Sleeper cab

Sleeper cab (CAB-SLP) with comfortable overnight accommodation for up to two people. Interior height 171 centimetres, 162 centimetres on the engine compartment cover.

Low Sleeper Cab

Low sleeper cab (CAB-LSLP) with lowered roof and cab suspension provides added load space above the cab. Interior height 147 centimetres, 138 centimetres over the engine compartment cover.

Four-point cab suspension

Choose from coil springs with dampers, front coil springs and rear air suspension, or air suspension all round.

Air intakes

Positioned on the left side in either a high or low position, depending on assignment. Front air intake is also available.

Colors

Take your pick, and look the part. Available in around 650 color variants.

Upholstery

Several styles are available. Vinyl, textile and plush. Some seat trims (excluding vinyl and textile) can be specified to include a ventilating function.

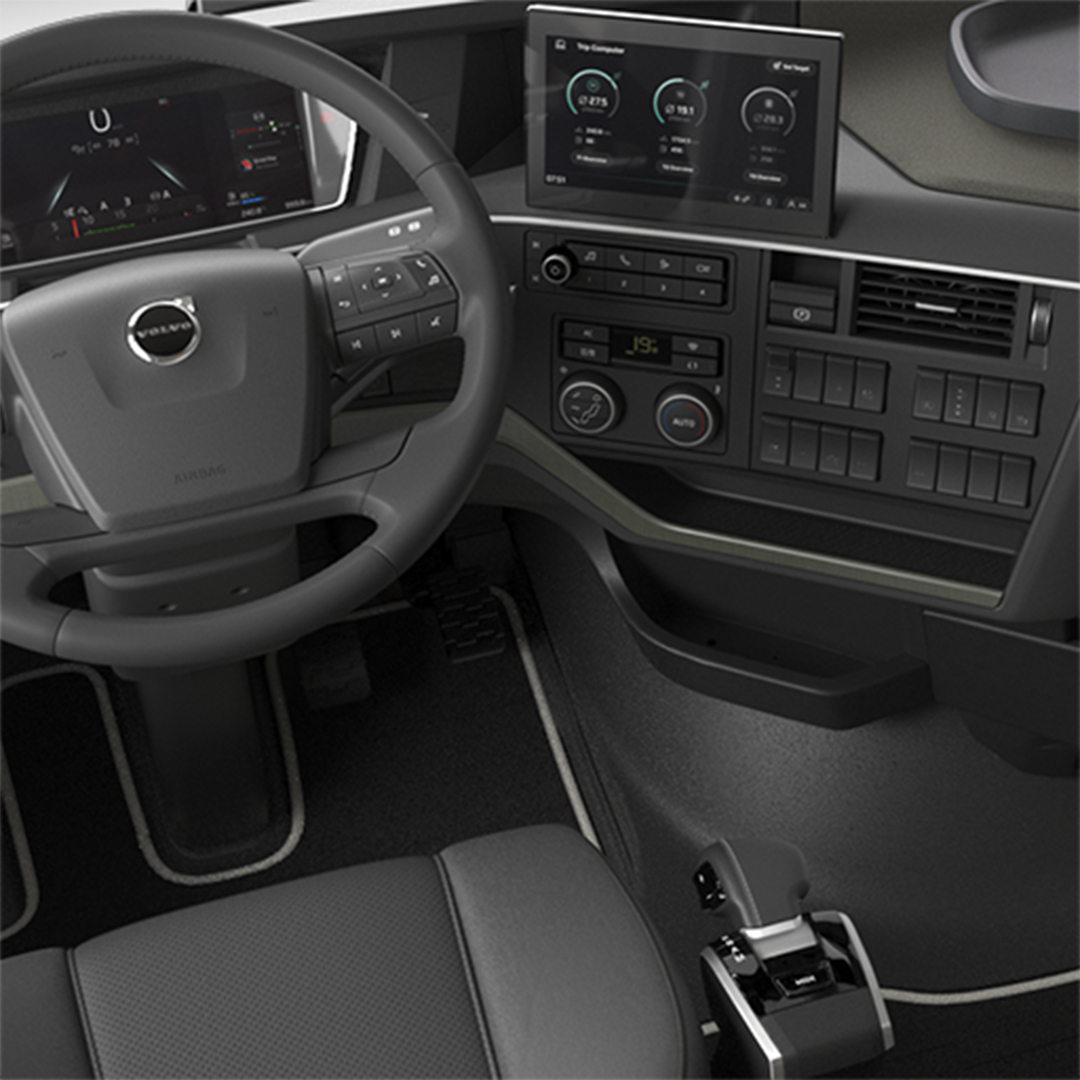

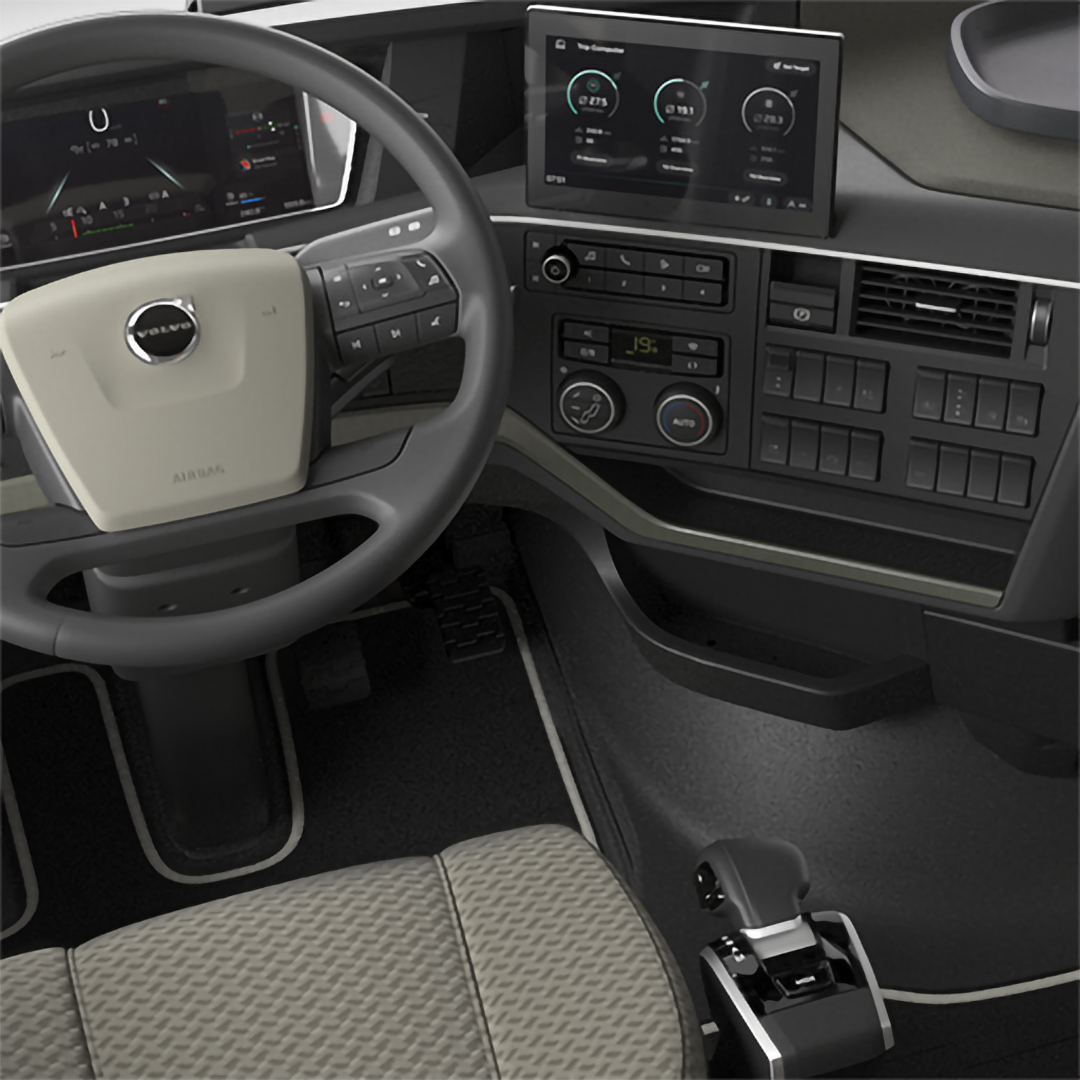

Driver’s seat

Choose from three different levels of comfort: Progressive (plush or leather),Dynamic (textile) and Robust (vinyl). Extra freedom comes through flexibility - the total adjustment scope fore to aft is 240 millimetres, and vertically 100 millimetres. The driver’s seat is fitted as standard with a head restraint, adjustable and fold-down backrest, vertical and fore-aft adjustment, adjustable lumbar support and angle-adjustable seat.

Passenger seat

Choose from three different levels of comfort: Progressive (plush or leather),Dynamic (textile) and Robust (vinyl). The passenger seats are equipped as standard with head restraints. A moving passenger seat is also available.

Beds

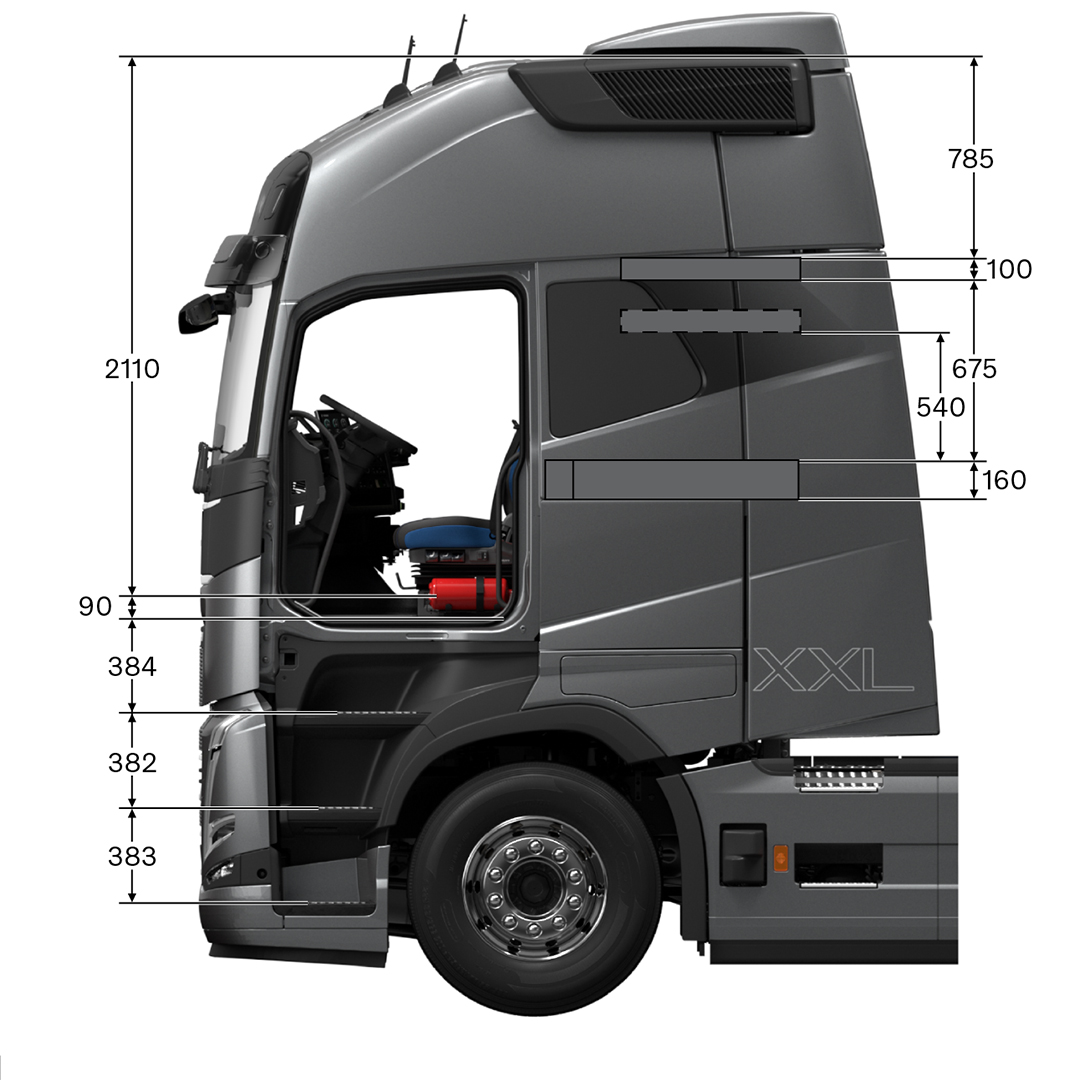

Built to provide a comfortable night's sleep. Bed sizes: 74×200 centimetres, with 81.5 centimetres wide middle section, or 74×200 centimetres, extractable to 88×200 centimetres with 95.5 centimetres wide middle section. The bed in the Globetrotter XXL cab is 213 centimetres long. The width at head, middle section and feet are 99/106.5/91 centimetres respectively. Equip your cab with a foam mattress or a 16 centimetres mattress, with pocket springs and excellent comfort. Three options of firmness are available: Soft, Semi-firm and Firm. We also provide two options of overlay mattress protector: improves comfort and allows you to square things away quicker.Also available: recline with adjustable backrest, and the Upper Comfort bed (dimensions 60×190 centimetres or 70×190 centimetres).

Interior storage

The cab contains a front shelf with four DIN-standard recesses and two large storage compartments with roller-blind doors on the driver and passenger sides. The rear wall is equipped with a light weight upper rear shelf with excellent illumination. Under the bed, you can find two pull-out drawers with a total volume of 130 litres. Additionally, there are two smaller storage compartments under the mattress at the foot (10 litres) and head (15 litres) of the bed, and a storage compartment at the foot of the bed for a PET bottle.

Exterior storage

On both sides of the cab you'll find large storage compartments that can be opened from outside or within. An additional unheated storage space of 30 litres is available under the cab on both sides.

Sky window/roof hatch

Each cab is equipped with a fixed sky window or an optional roof hatch that can be opened to 50 millimetres. This also serves as an emergency exit. Roof hatch adjustment can be done either manually or electrically.

Steering wheel

Comes in two different sizes – 450 mm or 500 mm in diameter, depending on your truck's specification. The steering wheel’s height can be adjusted by up to 90 mm and the angle can be adjusted by 28°. With neck tilt (option) the steering wheel can be adjusted in vertical position between -5° and +15° – increasing the driver comfort. Integrated controls in the steering wheel provide safe and comfortable operation of cruise control, horn, phone and the functions in the Instrument Display and Side Display.

Climate system

Three alternative climate systems allow you to control the temperature. Fan ventilation with conventional coolant heater. Air conditioning with manual control (MCC). Air conditioning with automatic temperature control (ECC/ECC2). Also available with sensors for sun intrusion, fog conditions and air quality. Complement the system with a cab and engine parking heater and I-ParkCool, our cab parking cooler.

I-Park Cool

The engine doesn't need to be running for you to enjoy an air-conditioned cab. I-ParkCool creates controls cab temperature in a stationary vehicle. It interacts with the cab parking heater to generate a comfortable climate: useful, for example, during nights when the temperature drops sharply and suddenly. The system checks the battery health so as not to compromise starting ability. And it calculates how much power is needed to heat or cool the cabin. If the batteries aren’t fully charged, the system works out how much can be used. Furthermore, it's quiet. The system generated roughly 20 dB less noise than competing systems in the market, reducing noise pollution and aiding rest. The system is fully integrated with the vehicle’s normal air ventilation system and hot or cold air is distributed through the ordinary vents as needed, distributed equally. Cab aerodynamics and standing height inside the cab are not affected by the system. With the exception of cab heater (PH-CAB).

Fuel tanks

Aluminium or steel tanks in volumes from 450 to 510 litres. Maximum
fuel volume is 1510 litres for a 4x2 tractor. Gas tanks in sizes 155 kg (375 l),
205 kg (495 l), and 225 kg (545 l).

AdBlue tanks

64 litres plastic tank with integrated Adblue pump.

Brakes
EBS (Electronically-controlled Brake System) provides superior response, performance and brake feel, while providing access to a number of handy features. EBS is now available both for disc brakes and Z-cam drum brakes (for a selected range of axle configurations and chassis heights). Upgrade your brake system by adding the EBS Medium package or any of the additional options.EBS is standard on all specifications.

EBS status control

EBS status monitoring via the TEA2+ vehicle electronic system and Volvo Tech Tool.

Auto hold

Brake the truck to a full stop and Auto Hold keeps the last applied braking pressure to hold the truck in position until the driver pushes the accelerator.

Lining wear analysis

Brake lining warning – calculates the remaining mileage available with the current brake linings (only for disc brakes).

Automatic parking brake release

The parking brake is released when the driver pushes the accelerator pedal and a gear is selected (only I-Shift gearbox).

Volvo Dynamic Steering

Active steering system with torque overlay. Delivers more steering force at low speeds, reduces steering kicks and keeps the steering wheel straight forward when braking on split friction. The steering wheel returns automatically to neutral position both when driving forward and when reversing. Volvo Dynamic Steering is now available for all axle configurations, including trucks with dual front axles. It’s also available in combination
with individual front suspension.
